Description
Stainless steel construction with the excepting of the slide and turning pivot shaft.
Designed for lifting and tilting of carts with capacity of 200 or 300l according to DIN 9797 ( special grippers for canisters, box pallets etc. can be made on request within the limits of maximum loading capacity of the equipment).
Lifting and tilting height within 1050…4050 mm.
For lifting and tilting height more than 3050 mm a special fortification of the equipment column is necessary.
Depending on the customer’s needs, the equipment can be connected stationary to the premises floor or mounted to a special wheel carrier.
High reliability and safety work thanks to a load lifting system with double roller chain.
Technical data:
Maximum loading capacity: 300 kg
Voltage: 400 V, 50 Hz
Power installed: 0,75 kW

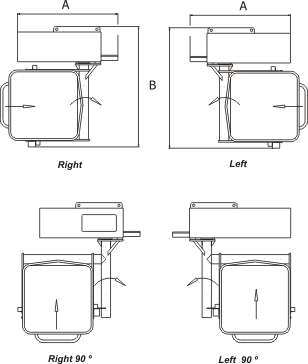

| Арт.номер | AxBxC (mm) | Design | Tilt-over height, mm |
|---|---|---|---|
| 03.12.214.000 | 985x1155x2450 | left | 1050~1550 |
| 03.12.314.000 | 985x1155x2950 | left | 1550~2050 |
| 03.12.414.000 | 985x1155x3450 | left | 2050~2550 |
| 03.12.514.000 | 985x1155x3950 | left | 2550~3050 |
| 03.12.614.000 | 985x1155x4450 | left | 3050~3550 |
| 03.12.714.000 | 985x1155x4950 | left | 3550~4050 |
| 03.12.224.000 | 985x1155x2450 | right | 1050~1550 |
| 03.12.324.000 | 985x1155x2950 | right | 1550~2050 |
| 03.12.424.000 | 985x1155x3450 | right | 2050~2550 |
| 03.12.524.000 | 985x1155x3950 | right | 2550~3050 |
| 03.12.624.000 | 985x1155x4450 | right | 3050~3550 |
| 03.12.724.000 | 985x1155x4950 | right | 3550~4050 |
