Description

Made completely of stainless steel;
Solid construction for stationary assembly;
Designed for lifting and tilting of tubs, box pallets and other containers with gross weight up to 1000 kg;
Lifting and tilting height: 1000 mm.

Technical data:
Max. loading capacity: 1000kg
Voltage: 400V, 50Hz
Power installed: 1,5kW

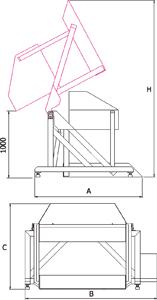

Art.No AxBxCxH (mm) Type of
the cart		 Design
03.45.110.000 1650х2000х1320×2680 Tubs – loading from
the narrow side		 static
03.45.120.000 1650х2000х1320×2680 Tubs – loading from
the broad side		 static
